Dongfeng 14m3 Large Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck

Brand Name : CLW

Model Number : CLW51206YDK

Certification : CCC,ISO,

Place of Origin : Suizhou, China

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T, D/P, D/A, Western Union,, MoneyGram

Supply Ability : 500Unit Per Month

Delivery Time : 20-30 Days

Packaging Details : Naked packing,Ro-ro,Bulk Ship

Brand : FOTON, ISUZU, Dongfeng, HOWO, JAC, JMC, SHACMAN,FAW

Function : Garbage compactor, waste removal

Material : Carbon Steel Q235B

Thickness : Side 4 mm and Bottom 5mm

Tank volume : 14cbm/14000Liters/12m3/ 10tons

Wheel Base : 4700

Horsepower : 180HP

Hydraulic Pump : Chinese Famous Brand

Control system : Siemens brand operate system.

Warranty : 1 Year

Control : Both manual and electric control

Color : Customized

Contact Now

Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck

Product Descriptions

Widely used
Support customized
Heavy load
Simple operation
Plate thickening
Fully function

Product Specifications

Truck Chassis Specification
Chassis		Dongfeng
Cab		Dongfeng single row cab
Driving Type		4*2 Left or right hand driving
Max Speed (km/h)		110
Overall dimension(mm)		835024903250
Tare weight( kg)		9850
Wheelbase(mm)		4700
Front/Rear track (mm)		1504/1425
Approach/Departure Angel		24/16
Tire		9.00R20, 6+1 pcs
Clutch		Single-plate dry diaphragm spring clutch
Steering		Hydraulic steering with power assistance
Gear box		6-speed
Enging	Model	Cummins 180hp
	Fuel Type	Diesel fuel
	Type	Water-cooled four-stroke, direct injection, turbocharged
Braking system	Service Brake	Oil brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v

Upper-Body specification
Material of tank		Material : Q235,Thickness :4(mm) side /5(mm) rear
Dirty tank volume		14cbm/14000Liters/14M3
Filler volume		500L
Filing time(s)		8~10s
Filling cycle time(s)		50~60s/once
Discharge type		Rear Discharging
Time for Discharging		30-40S
Hydraulic pressure		16Mpa
Controlling way		Manualy and electrical control

Reference photos

Dongfeng 14m3 Large Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck

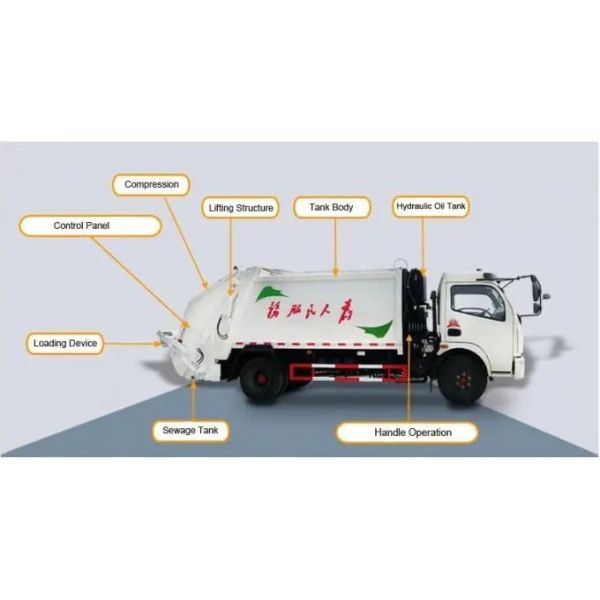

Diagram of compactor garbage truck

Dongfeng 14m3 Large Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck

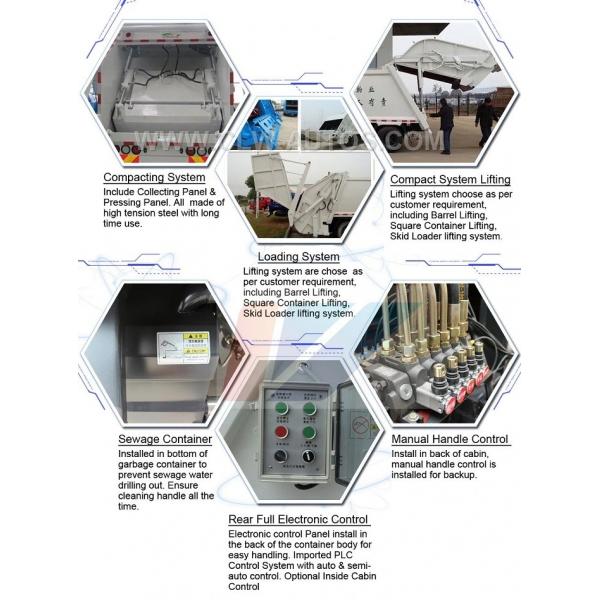

Main parts of garbage truck

Dongfeng 14m3 Large Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck

Factory overview

Dongfeng 14m3 Large Reliability Solid Waste Garbage Compactor Truck Waste Disposal truck
